Stainless Steel Airport Turnstile with Face Recognition and Fingerprint

Stainless Steel Airport Turnstile with Face Recognition and Fingerprint
Stainless Steel Airport Turnstile with Face Recognition and Fingerprint Stainless Steel Airport Turnstile with Face Recognition and Fingerprint Stainless Steel Airport Turnstile with Face Recognition and Fingerprint Stainless Steel Airport Turnstile with Face Recognition and Fingerprint Stainless Steel Airport Turnstile with Face Recognition and Fingerprint Stainless Steel Airport Turnstile with Face Recognition and Fingerprint Stainless Steel Airport Turnstile with Face Recognition and Fingerprint Stainless Steel Airport Turnstile with Face Recognition and Fingerprint Stainless Steel Airport Turnstile with Face Recognition and Fingerprint
Informasi Dasar
Place of Origin: China
Nama merek: DOOR or OEM
Sertifikasi: CE / IS09001
Model Number: DR.TD6632
Minimum Order Quantity: 2 sets
Harga: negotiable
Packaging Details: wood carton
Delivery Time: 5-7 working days
Payment Terms: T/T
Supply Ability: 2500 sets per month
Harga terbaik Hubungi sekarang
Material: 304# Stainless Steel Suitable For: Access Control, Entrance And Exit Control
Turnstile Material: SUS304 Stainless Communication Interface: RS485
Power Supply: AC110/AC220+/-10% Swing arm available: Acrylics Or Tempered Glass
Driving Motor: Servo motor Opening Signal Input:: Dry Contact
Working environment: -25℃-+70℃ Pass speed: 30-35 Personal/min
Support System: Face Recognition,ic/id Card,fingerprint Motor: DC24V Brushless Motor
Passage Width: ≤700 mm IP Rating: IP42
Mean Cycles Between Failure: 20 million times Voltage: AC110V/AC220V±10% 50-60Hz
Method of position: Motor Driving Mtbf: 5 Million Times
Size: L2613 .92*W1100*H1555.5mm Number of Sensor: 34 groups
Menyoroti:

stainless steel airport turnstile

,

airport turnstile with face recognition

,

fingerprint airport turnstile

Face Recognition Fingerprint Airport Turnstile
Airport Swing Gates With Light Curtain Infrared Technology
Product Specifications
Attribute Value
Material 304# Stainless Steel
Suitable For Access Control, Entrance And Exit Control
Turnstile Material SUS304 Stainless
Communication Interface RS485
Power Supply AC110/AC220+/-10%
Swing arm available Acrylics Or Tempered Glass
Driving Motor Servo motor
Opening Signal Input Dry Contact
Working environment -25℃-+70℃
Pass speed 30-35 Personal/min
Support System Face Recognition, IC/ID Card, Fingerprint
Motor DC24V Brushless Motor
Passage Width ≤700 mm
IP Rating IP42
Mean Cycles Between Failure 20 million times
Voltage AC110V/AC220V±10% 50-60Hz
Method of position Motor Driving
MTBF 5 Million Times
Size L2613.92*W1100*H1555.5mm
Number of Sensor 34 groups
Optimized Features
  • Multiple Real-Name Verification: Integrates facial/fingerprint recognition, ID/passport verification, and ticket validation for accurate real-name information recording.
  • High-Security AB Door Interlock: Uses AB door interlock structure (Door A open/Door B closed) with passage only granted upon successful verification.
  • Unidirectional Traffic Control: Enforces one-way passage to manage passenger flow and optimize station management.
  • Brushless Servo Motor Drive: Provides stable, smooth operation with quiet performance and low power consumption.
  • Extended Motor Lifespan: Brushless motor design eliminates carbon brush replacement with service life of 5-8 years.
  • Core Face-ID Matching: Industry-leading facial recognition technology with secure data storage.
  • Police System Integration: Interfaces with police databases for enhanced security monitoring.
Key Features
  • Seamless integration with standard access control devices (IC/ID card readers, QR code scanners, etc.)
  • Emergency safety features with dedicated fire button interfaces
  • 8 military-grade infrared sensors prevent tailgating and reverse passage
  • Multi-layer anti-pinch design with optional widened lane for luggage/wheelchair access
  • Compatible with RS485, TCP/IP (optional), and dry contact interfaces
Note: Recognition systems not included; product provides standardized connection interfaces only

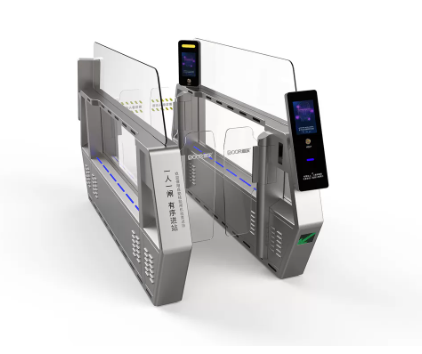

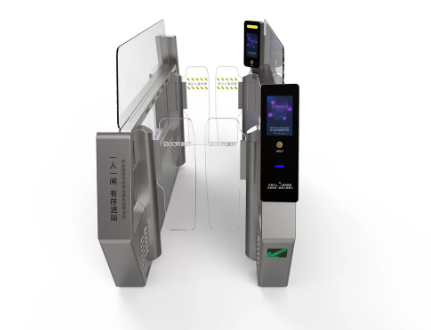

Stainless Steel Airport Turnstile with Face Recognition and Fingerprint 0 Stainless Steel Airport Turnstile with Face Recognition and Fingerprint 1
Applications

Widely used for official or corporate buildings, university lab access points, industrial buildings, and hospital radiology departments.

Customization Options
  • Customized logo (Min. order: 2 pieces)
  • Customized packaging (Min. order: 2 pieces)
  • Graphic customization (Min. order: 2 pieces)
Supplier's Customization Ability
  • Minor customization
  • Drawing-based customization
  • Sample-based customization
  • Full customization

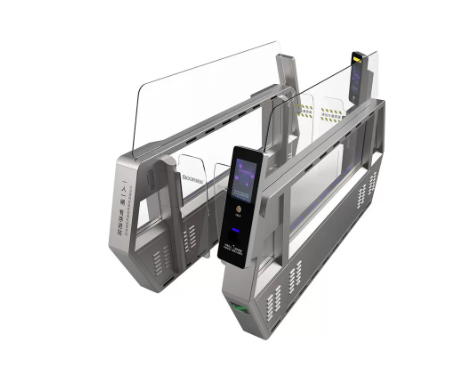

Stainless Steel Airport Turnstile with Face Recognition and Fingerprint 2
Shipping Information

Shipping fee and delivery date to be negotiated. Contact supplier for more details.
