Smart Speed Gate Turnstile Gate Swing Gate Servo Motor for Art Gallery Coffee Bar

Informasi Dasar

Tempat asal:	Shenzhen China
Nama merek:	DOOR
Sertifikasi:	CE / IS09001
Nomor model:	DR.TD6660H

Kuantitas min Order:	1 jalur
Harga:	US $1577-1777
Kemasan rincian:	Paket Kertas+Paket Kayu Lapis
Waktu pengiriman:	2-8 minggu
Syarat-syarat pembayaran:	T/t,
Menyediakan kemampuan:	500 set per bulan

Harga terbaik Hubungi sekarang

Bahan Penutup Atas::	304 Baja tahan karat yang disikat	Bahan lengan ayun:	Akrilik atau kaca temper
Lebar bagian:	600-950mm	Motor penggerak:	Motor servo
Melewati Sendok:	30 orang/menit	Antarmuka komunikasi:	RS485/RS232
Input daya:	AC100-240V; 50/60Hz	Input sinyal pembukaan:	Kontak kering
Mtbf:	5 juta kali	Sistem pendukung:	pengenalan wajah, ic/id card, sidik jari

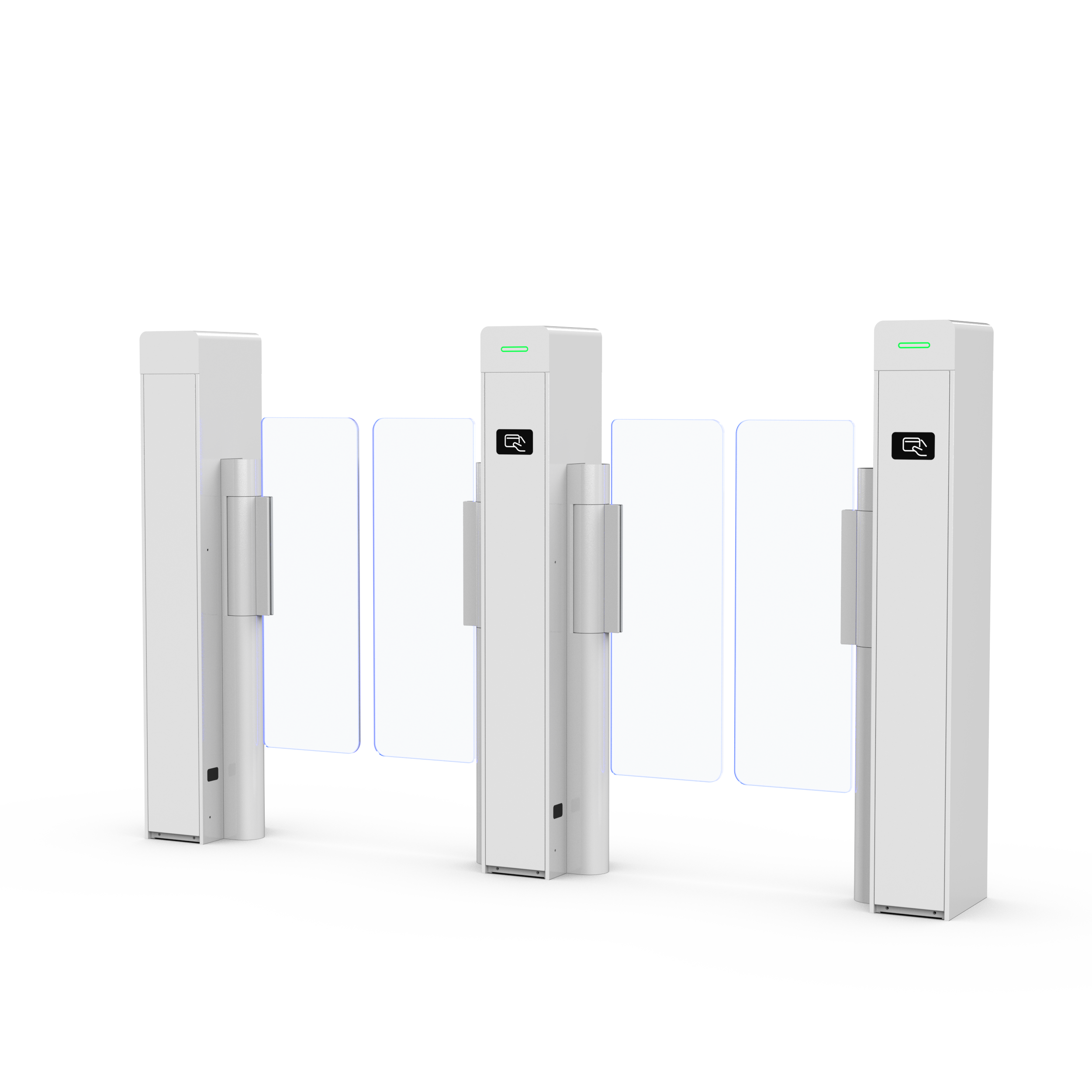

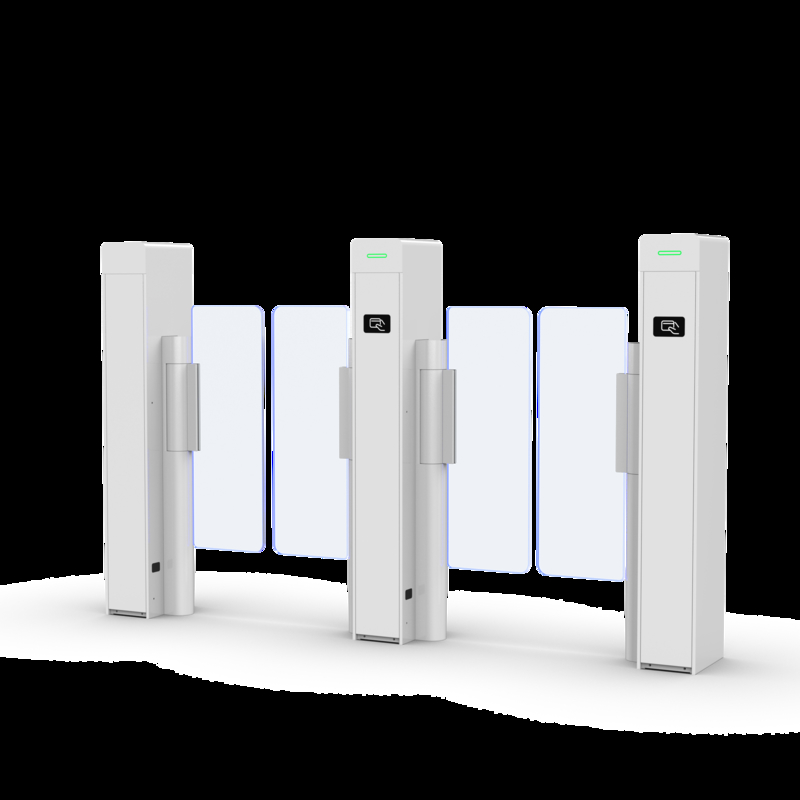

Servo Motor Swing Gate Turnstile with Face Recognition 304 Stainless Steel

Product Specifications

Attribute	Value
Top Cover Material	304 Brushed stainless steel
Swing Arm Material	Acrylics Or Tempered Glass
Passage Width	600-950mm
Drive Motor	Servo Motor
Passing Speed	30 person/min
Communication interface	RS485/RS232
Power Input	AC100-240V; 50/60HZ
Opening Signal Input	Dry Contact
MTBF	5 Million Times
Support System	Face Recognition, IC/ID Card, Fingerprint

Product Overview

Swing gates are designed for premium access control in commercial environments, allowing authorized passage for personnel, visitors with luggage, and individuals with disabilities. Ideal for corporate offices, luxury hotels, and high-end facilities, these gates combine elegant design with robust access management for both security and seamless mobility.

Key Features

High-grade materials enhance stability and performance
Optical elements provide clear passing guidance and security level protection
High-speed chip and AI algorithm alliance for reliable performance
Servo drive unit with triple loop PID algorithm for real-time monitoring
Soft motion curve with accurate positioning and steady start/stop
Anti-pinch technology and top-speed synchronization

Pedestrian Gate Details

Composed of cabinet body, control system, brake movement, and infrared sensors
Quick and stable stopping with no shaking or mechanical jamming
Arm remains open automatically after power loss
Complies with all fire protection requirements

Shipping Options

Air shipping for urgent requirements
Sea shipping for economical delivery
Courier/Express service for parts delivery

Manufacturer Information

Shenzhen Door Intelligent Control Technology Co., Ltd. (Stock Code 832966) is a high-tech enterprise specializing in intelligent access control based on cloud computing. Located in Longhua District, Shenzhen, the company employs over 400 staff including 200 R&D personnel.

Certifications include National High-Tech Enterprise, Double Soft Enterprise, ISO9000, and CE. The company holds over 60 invention patents and national software copyrights with registered capital of CNY 100.06 million.
